The heart of the Solar Thermal system: The solar boiler (or tank) collects hot water. From this reserve the water installation and heating of the house is supplied.
Solar boiler systems of ANDRIANOS are compatible with all kinds of heating systems. The space-saving construction structure, simple and fast installation, modern design and high performance make them an ideal solution for reliable energy savings. For Example : A 1.000 lt boiler + 18 m2 of solar collectors = g 5.800 kWh Energy savinper year.
SOLAR TANKS AND-solar
Solar Tanks of fresh water for Production of Domestic Hot Water and Heating Assist are manufactured in Germany with the highest quality stantard.
Water for use is heated by high quality stainless steel corrugated pipe with 1 smooth heat exchanger pipe for connection to solar thermal system.
New tanks make heat storage more efficient by incorporating stratification devices.
Download the commercial brochure of ANDRIANOS Solar Tanks-Boilers
Solar Boilers AND-solar

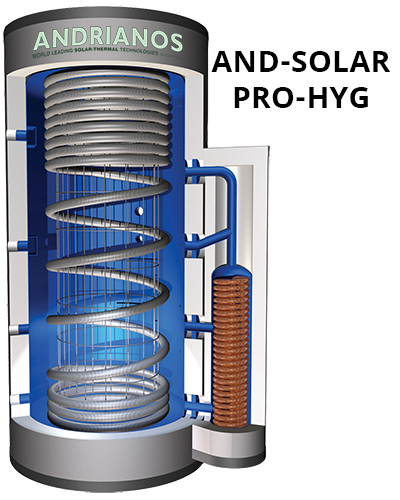

ANDRIANOS AND-SOLAR PRO-HYG STRATIFIED TANK MADE IN GERMANY
Multi-functional stratified tank system (in combination with a spherical exchanger) made of S235JR steel for domestic water and heating. Backup tank with optimum stratified charging without tank mixing, with integrated hygienic water heating using a continuous heating process with stainless steel corrugated pipe and inflow absorbers for optimum retention of the stratification.
- Material: Steel S235JR
- Insulation – energy class B (500-2000lt): 160mm Green Line, 140mm cover insulation, and 5mm foil jacket in RAL9006 silver, removable
- Insulation – energy class C: 120mm Green Line, cover insulation 100mm, and 5mm foil jacket in RAL9006 silver, removable
- Max tank operating pressure: 3 bar / max
- Max corrugated pipe operating pressure: 6 bar / max
- Max temperature: 110°C
Advantages:
-Patented method for extremely high domestic hot water efficiency – the obtained solar energy can be used earlier due to stratification
-Simple operating principle without expensive technology (gravity operating principle)
-Hygienic preparation of domestic hot water with special stainless steel corrugated pipe DN40
-It is especially suitable for hotels and industrial enterprises with permanent significant drinking water needs
ANDRIANOS - Single coil hygienic combi tank AND-solar FS1
Combined tank: Buffer storage tank made of low carbon steel with integrated stainless-steel DHW coil-in-tank storage. The domestic water heats up instantaneously as it flows through the large surface stainless coil. Thus water is delivered hot while still fresh and clean. The added heat exchanger coil enables the tank to use energy from different heat sources.
- Removable insulation with thickness 100mm and outer casing of PVC with RAL9006 color.
- Multi-position mounting of temperature sensor.
- Hot water generation based on the flow-through principle guarantees sediment-, bacteria-and contamination-free hot water.
- Heat exchanger coil.
- All threads are internal.
- Easy installation.
- Optional kit for electric heating with nominal power 3Kw, 4.5Kw, 6Kw, or 7.5Kw
- Safety valve 8bar,thermometer and kit electric heating are optional
- Available models 500 lt, 800lt, 1000lt and 1500lt
Advantages:
- Simple and cost-effective domestic hot water heating, especially with the use of a heat pump
- Hygienic water heating due to a special corrugated stainless-steel pipe
- Space-saving construction
- It is combined with all conventional heating systems.
Available in 4 types of insulation:
- with 75mm insulation from HVI hard foam composite material (Energy Class A)
- with 75mm PU hard foam insulation (Energy Class B)
- with 160mm Green Line, 140mm thick insulation, and 5mm mantle (Energy Class B)
- with 120mm Green Line, 100mm thick insulation, and 5mm mantle (Energy Class C)
Solar Quality made in Germany
ANDRIANOS - Double coil hygienic combi tank AND-solar FS2
Combined tank: Buffer storage tank made of low carbon steel with integrated stainless-steel DHW coil-in-tank storage. The domestic water heats up instantaneously as it flows through the large surface stainless coil. Thus water is delivered hot while still fresh and clean. The two added heat exchanger coils enable the tank to use energy from multiple heat sources.
- Removable insulation with thickness 100mm and outer casing of PVC with RAL9006 color.
- Multi-position mounting of temperature sensor.
- Hot water generation based on the flow-through principle guarantees sediment-, bacteria-and contamination-free hot water.
- Two heat exchanger coils.
- All threads are internal.
- Easy installation.
- Optional kit for electric heating with nominal power 3Kw, 4.5Kw, 6Kw, or 7.5Kw
- Safety valve 8bar,thermometer and kit electric heating are optional
- Available models 500 lt, 800lt, 1000lt and 1500lt
ANDRIANOS - Double coil water heater AND-solar SSP for indirect heating
Floor standing water heater with heat exchanger for indirect heating. The heat exchanger enables the tank to utilize two external sources of renewable energy, such as a solar system and a biomass burning boiler.
- High efficiency thermal insulation and outer casing of PVC with RAL 9006 color.
- Multi-position mounting of temperatures sensor.
- Complex corrosion protection realized by means of titanium enamel and anode protection.
- All threads are internal.
- Easy installation.
- Convenient inspection opening
- Two heat exchangers enables the tank to utilize an external sources of renewable energy, such as a solar system and a biomass boiler.
- Optional kit for electric heating with nominal power 3kw, 4,5Kw, 6kw, or 7,5Kw
- Available models from 150 lt to 1.500lt
Water heaters AND-solar SWP with high efficiency heat exchanger coil. Suitable for heat pump installations.
AND-solar SWP containers with a very large surface area suitable for solar hot water heating and heat pump systems with a large number of consumers.
Specifications:
• High efficiency insulation and outer casing of PVC with RAL9006 color.
• Multi-position mounting of temperature sensor.
• Complex corrosion protection realized by means of titanium enamel and anode protector.
• All threads are internal.
• High efficiency heat exchanger coil stretching through the entire inner volume of the tank (for models SWP N).
• Two coaxial heat exchanger coils with increased surface for better efficiency (for models SWP 2N).
• Easy installation.
• Convenient inspection opening.
• Optional kit for electric heating with nominal power 3 Kw -4,5 Kw -6 Kw -7,5 Kw
• Test pressure of tank: 15bar , Test pressure of coil: 25bar
AND-solar SWP N with one exchanger:150lt, 200lt, 300lt,400lt,500lt
AND-solar SWP 2N with two exchangers: 300lt,400lt,500lt
