Fan coils are indoor air conditioners for cooling and heating, wich consisting of a heat exchanger (coil) and a fan and are connected to a water circuit and are the system for transmitting thermal energy within the premises of the building. Their operation is based on the forced air circulation created by the fan they have. With the help of the fan, the heat is distributed in the space, in contrast to the simple radiators that do it with radiation and synagogue without hasty flow of air.
The main advantages of using fan coils over conventional radiators:
- In combination with a heat pump we can have heating and cooling with a single system.
- Increased efficiency in heating and cooling, even at very low or high temperatures.
- Power consumption is minimal and proportional to fan speed.
- Easy installation.
- Possibility of autonomy per air-conditioned space with the use of thermostats per room.
- They can be easily connected to Smart Home systems for remote control, precision adjustment and significant energy savings.
- They can be placed in visible and hidden places of the space.
- Exemption from the many outdoor units required by split air conditioners.
Applications
Fan coils combine and work perfectly with all heat sources, usually with heat pumps, while when cooling the space is a primary goal, then the installation of fan coils is inevitable. In addition to heat pumps, fan coils can be connected to other heating systems, such as condensing boilers, solar systems and / or hybrid systems, combining two or more of the above heat sources.
In general, fan coils can be installed in any building and function as a new system from scratch or replace, with the appropriate modifications, the existing thermal energy transmission system.
ANDRIANOS has been dealing with Heating - Cooling - Domestic Hot Water Production systems since 1994.It has products based on aesthetics, energy savings and low emissions and is certified for this by TUV AUSTRIA with ISO 9001 and ISO 14001. For fan coils has in its range of Fan Coil of OLIMPIA SPLENDID, while it is also he is a master-dealer for Greece of CARRIER and an official distributor of the Italian ARISTON.
Fan Coils REVERSO
REVERSO FS is the floor fan coil with a slim and modern design for perfect harmony with the home decoration, quiet as a radiator and efficient thanks to the DC Inverter motor.
REVERSO FS - Fan Coil Slim Fit Inverter for floor standing: Ideal for residential or commercial premises with visible installation.
Available in 4 sizes, with cooling capacities from 1.19 to 3.73 kW and heating capacities from 1.55 to 4.71 kW.
Dimensions: Height 55,3 cm, depth only 12 cm and width from 68,1 to 125,7 cm.
Features:
- Modern design, with front panel in tempered glass crystal
- The smallest thickness in their class, only 12cm
- Minimum noise level below the threshold of the audible, 20 dB (A).
- DC Inverter technology.
- Ready for delivery in silver colour RAL 9003. Available in White or Black colour, upon special request
- Low power consumption, only 4 Watts
- Pleated stainless steel filters of unlimited duration
- Tangential aluminum fan for greater efficiency
- Controls built-in or with remote wall panel
- Left or right hydraulic connections always available without extra work
🟢 REVERSO TW 600 - Fan Coil Vertical Inverter: Elegant choice for installation along the wall
TW600 is an extremely thin floor fan coil with a thickness of only 12cm over its entire height. Efficient thanks to the DC Inverter, it is available with eight speeds and easy to manage thanks to smartphone control.
Available in one size, with a cooling capacity of 1.4 kW and a thermal capacity of 1.7 kW.
Dimensions: Height 179 cm, depth just 12 cm and width 43.5 cm.
Features:
- Super thin thickness, only 12cm
- DC Inverter technology
- Minimum noise below the audible threshold 20 dB(A)
- Ready for delivery in silver colour RAL 9003. Available in White or Black colour, upon special request
- 8 speed control programs
- Heating, cooling, dehumidifying and filtering
- Vertical (wall-mounted) installation only - can be installed behind doors
- Installation in a two-pipe piping system
- With wifi function for remote control
- Controls with remote control and comfortable display.
- Low electrical consumption, only 4 Watts
- Front panel in tempered glass crystal
- Optional 200 watt radiant panel
- Unlimited life stainless steel pleated filters
- Aluminum tangential fan for greater efficiency
- Controls with remote control and comfortable display
🟢 REVERSO BT 400 - Fan Coil Inverter for bathrooms and service spaces: Durable for use in humid areas, with integrated towel rail.
BT400 bath fan coil for two-pipe piping system, suitable for use as a towel rail, efficient thanks to DC Inverter.
Designed specifically for bathrooms but can easily fit behind a door. A one size fan coil, with eight speeds and easy management thanks to smartphone control.
Available in one size, with a cooling capacity of 1.2 kW and a thermal capacity of 1.45 kW.
Dimensions: Height 110 cm, depth only 12 cm and width 56.5 cm.
Features:
- The smallest thickness in their class, only 12cm
- DC Inverter technology.
- Minimum noise level below the threshold of the audible, 20 dB (A).
- Ready for delivery in silver colour RAL 9003. Available in White or Black colour, upon special request
- 8 speed control programs
- Heating, cooling, dehumidifying and filtering
- Vertical (wall-mounted) installation only - at least 1 metre from the floor
- With wifi function for remote control
- The plumbing connections are on the right and the electrical connection on the left side.
- Low power consumption, only 4 Watts
- Front panel in tempered glass crystal
- Radiant panel of 200Watt as standard
- Pleated stainless steel filters of unlimited duration
- Tangential aluminum fan for greater efficiency
- Control with infrared handset
- Smart display
🟢 REVERSO HW 800 - Fan Coil Inverter High Wall: For those who prefer the comfort of the wall-mounted fan coil with design.
Fan coil HW800 is designed for mounting on high walls allowing easy installation and maintenance.
Efficient thanks to the DC Inverter, available with eight speeds and easy to manage thanks to smartphone control.
Available in one size, with a cooling capacity of 2.45 kW and a thermal capacity of 3.30 kW.
Dimensions: Height 38.3 cm, depth just 12 cm and width 125.7 cm.
Features:
- The smallest thickness in their class, only 12cm
- DC Inverter technology
- Minimum noise level below the threshold of the audible, 20 dB (A).
- Ready for delivery in silver colour RAL 9003. Available in White or Black colour, upon special request
- 8 speed control programs
- Heating, cooling, dehumidifying and filtering
- Double blind for optimal air diffusion in the room
- Vertical connection to wall (high)
- Installation in a two-pipe piping system
- With wifi function for remote control
- The plumbing connections are on the right and the electrical connection on the left side.
- Tangential aluminum fan for greater efficiency
- Smart display
- Control with infrared handset
- Low power consumption, only 4 Watts
- Adjustable aluminium grilles.
- Pleated stainless steel filters of unlimited duration
- Front panel in tempered glass crystal
🟢 FIPA BH AERFOR - Fan Coil Hidden type - horizontal and vertical built-in applications: The ideal choice for completely invisible installation.
The Aerfor FIPA series fan coils are designed to provide higher efficiency than standard fan coils, both in cooling and heating conditions. The FIPA fan coil is designed for installation in horizontal and vertical embedded applications where high levels of comfort are essential. Their easy installation and inspection provide long lasting high quality performance without the need for difficult cleaning. The noise level is low.
Available in 4 sizes, with cooling capacity from 2.2 to 5.5 kW and thermal capacity from 2.8 to 7.10 kW.
Dimensions: Height 21.8 cm, depth 50 cm and width from 55.8 to 107.8 cm.
Features:
- Structure is made of galvanized metal sheet.
- Insulation is realized with quality materials in accordance to UNI EN-13501-4 fi re resistance rules and ensure an excellent thermal and acoustic product.
- Direct drive fan, forward blades made in galvanized steel or plastic, impeller dynamically and statically balanced, n.6 speeds available.
- Panel fi lter type class G1, washable and renewable. Option class G3 also available.
Fan Coils OLIMPIA SPLENDID
OLIMPIA SPLENDID has a full range of fan coils to meet every application need. ANDRIANOS has the following models available in its range:
OLIMPIA SPLENDID Fan Coil FLOOR/ROOF ULTRASLIM Bi2 SMART S1 SL Inverter
Linear aesthetics (with bottom suction system) for maximum integration with the surrounding architecture. Standard configuration with short delivery grille, symmetrical, for installation of the touch controls possible on site.
Range consisting of 5 power models 200, 400, 600, 800 & 1000.
With corresponding total power output in cooling mode 0,82 kW, 1,74 kW, 2,54 kW, 3,29 kW & 3,78 kW.
With corresponding total power output in heating mode 0,88 kW, 1,94 kW, 2,60 kW, 3,44kW & 3,91 kW.
Length of the models is 75,9 cm, 95,9 cm, 115,9 cm, 135,9 cm & 155,9 cm respectively.
Height without support legs is 57,9 cm and with support legs 65,9 cm in all models.
They have a wedge shape, thinning upwards for improved aesthetics and aerodynamic flow, with a thickness on the bottom side of 15 cm and a thickness on the top side of 12.9 cm on all models.
FEATURES:
- Air Conditions, Dehumidifies, Heats and Filters
- Brushless DC motor
- Metal front, Smart sides in ABS
- Total Flat aesthetic with air extraction system from the bottom side
- Installation floor mounted, wall mounted or ceiling-mounted.
- Optional kit wifi
- Available in the colours: White RAL 9003
OLIMPIA SPLENDID Fan Coil FLOOR/ROOF SLIM Bi2 Air SL AR Inverter - High power
Fan coil units Bi2 AIR SL SLIM with min thickness 17,9cm and up to 4,85 kW of power, guarantees maximum silence and perfect air distribution for cooling and heating.
Suitable for bigger rooms and professional spaces.
Range consisting of 3 power modules 1100, 1400 & 1600.
With corresponding total power output in cooling mode 3,85 kW, 4,45 kW & 4,85 kW.
With corresponding total power output in heating mode 4,11 kW, 4,7 kW & 5,05 kW.
Length of the models is 134,5 cm, 134,5 cm & 141,5 cm respectively.
Height without support legs is 59,9 cm and with support legs 71,9 cm in all models.
They have a wedge shape, thinning upwards for improved aesthetics and aerodynamic flow, with a Thickness at the bottom of 20 cm and Thickness at the top of 17.9 cm on all models.
FEATURES:
- Heats, Cools, Dehumidifies and Filters.
- Integral aesthetics with intake from the lower side.
- Front in metal, sides in ABS.
- DC brushless motor.
- Monobloc body for work in comfort.
- Double motorised steel air delivery flap.
- Anti-intrusion grilles on the air intake and outlet.
- Removable filters placed on the air intake.
- Floor mounted, wall mounted or ceiling mounted
- Available in the colours: White RAL 9003
OLIMPIA SPLENDID Fan Coil Bi2 Naked SLI - ULTRASLIM Inverter
Fan Coil Units Bi2 Naked SLI UltraSlim guarantees minimum noise levels combined with maximum airflow.
Range consisting of 4 power modules 200, 400, 600 & 800.
With corresponding total power output in cooling mode 0.82 kW, 1.74 kW, 2.54 kW & 3.29 kW.
With corresponding total power output in heating mode 1.05 kW, 2.31 kW, 3.12 kW & 4.10 kW.
The length of the models is 52.5 cm, 72.5 cm, 92.5 cm & 112.5 cm respectively.
Height is 57.6 cm, Thickness is 12.6 cm & Recessed wall-mounted thickness of only 14.2 cm in all models.
FEATURES:
- Air Conditions, Dehumidifies, Heats and Filter
- Closing panel in metal for wall installation
- Brushless DC motor
- Metal closing panel available in the colours: white RAL 9003
OLIMPIA SPLENDID Fan Coil Bi2 Naked SLI - SLIM Inverter
Fan Coil Units Bi2 Naked SLI Slim Up to 4.85 kW of power, for larger spaces and colder climates.
Range consisting of 3 power modules 1100, 1400 & 1600
With corresponding total power output in cooling mode 3,85 kW, 4,45 kW & 4,85 kW.
With corresponding total power output in heating mode 4,11 kW, 4,7 kW & 5,05 kW.
Length of the models is 111 cm, 111 cm & 118 cm respectively.
Height is 59.9 cm, Thickness is 19.8 cm & Recessed wall-mounted thickness of 21.7 cm in all models.
FEATURES:
- Air Conditions, Dehumidifies, Heats and Filter
- Closing panel in metal for wall installation
- Brushless DC motor
- Metal closing panel available in the colours: white RAL 9003
Recessed formwork and closing panel available for Bi2 Naked SLI models

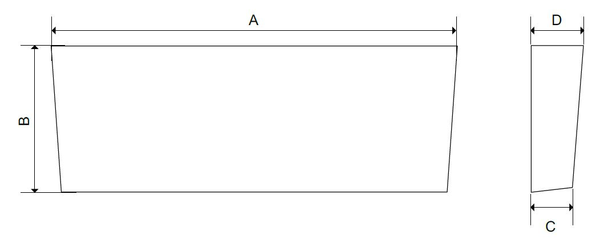

OLIMPIA SPLENDID Fan Coil High-Wall ULTRASLIM Bi2 Wall SLW AR Inverter
By rotating the display, Bi2 Wall can be installed either low or high on the wall. Similar design as the Bi2 Air terminal to allow aesthetically coordinated installations in the same environment.
Range consisting of 3 models 400, 600 & 800.
With corresponding total power output in cooling mode from 1,01 kW, 1,23 kW & 1,82 kW.
With corresponding total power output in heating mode 1,40 kW, 1,90 kW & 2,50 kW.
Length of the models is 90,6 cm, 110,6 cm & 130,6 cm respectively.
Height is 38 cm in all models.
They feature a wedge shape, thinning down for improved aesthetics and aerodynamic flow, with Thickness on the bottom 12.9 cm and Thickness on the top 15 cm on all models.
FEATURES:
- Air Conditions, Dehumidifies, Heats and Filter
- Total flat aesthetics
- Brushless DC motor
- Robust metal body
- Extractable filters placed on the air intake
- Available in the colours: White RAL 9003
OLIMPIA SPLENDID Fan Coil High-Wall Bi2 Wall SLW AR Slim Inverter
Specifically designed to minimise volume and expand the possibilities for over-door installation. With equal power, it is among the most compact on the market. Similar design as the Bi2 Air terminal to allow aesthetically coordinated installations in the same environment.
Range consisting of 3 models 1000, 1200 & 1400.
With corresponding total power output in cooling mode 0,82 kW, 1,74 kW, 2,54 kW, 3,29 kW & 3,78 kW.
With corresponding total power output in heating mode 0,88 kW, 1,94 kW, 2,60 kW, 3,44kW & 3,91 kW.
Length is 94 cm, Height is 30,3 cm & Thickness is 22,6 in all models.
FEATURES:
- Air Conditions, Dehumidifies, Heats and Filter
- Extractable filters located on the air intake
- Total flat aesthetics
- DC brushless motor
- Single-piece body for working comfortably
- Available in the colours: White RAL 9003
Fan Coils CARRIER
New series of Fan Coils by Carrier are added to the range of Heating and Cooling products of ANDRIANOS. Top performance with new Slim models that will make installation easier than ever.
Carrier has a full range of fan coils that meet every application need. By investing in innovation, it has managed to constantly create new products and services that improve comfort in the indoor environment, combined with maximum flexibility and efficiency. Carrier fan coil series achieve top performance that makes the installation of Heating and Cooling systems easier than ever.
CARRIER Fan Coil series 42ΝD & 42NC
Energy efficiency and ecodesign performance.
Reference solution for renovations of large buildings such as offices, hotels as well as renovation of buildings, etc.
It has:
- Improved comfort levels, very low noise level
- Innovative design that ensures easy installation and simplified maintenance
Fan Coil CARRIER 42ND Floor of Ceiling Concealed Model
In 11 available sizes, with cooling efficiency from 0.9 to 6.2 kW and heating efficiency from 1.5 to 9.6 kW.
Dimensions: height 55.6 cm, depth 24.5 cm and width from 65 to 161 cm. With the support legs the height is increased by 10 cm.
Available and the corresponding 42ND / NC-LEC Inverter models. The LEC models improve the unit's energy efficiency and offer reduced power consumption, more comfort, maximum flexibility and longer life.
Fan Coil CARRIER 42NC Console / under ceiling with cabinet
In 11 available sizes, with cooling efficiency from 0.9 to 6.2 kW and heating efficiency from 1.5 to 9.6 kW.
Dimensions: height 60.7 cm, depth 25 cm and width from 84 to 180 cm. With the support legs the height is increased by 10 cm.
Available and the corresponding 42NC / NC-LEC Inverter models. The LEC models improve the unit's energy efficiency and offer reduced power consumption, more comfort, maximum flexibility and longer life.
CARRIER Fan Coil SLIM Series 42SI EC INVERTER
With a discreet and elegant design, the new IDROFAN SLIM terminal unit of Carrier harmonizes in every space and covers every need. Provides optimal comfort in both new and renovated buildings.
It has:
- Elegant design with slim dimensions
- High efficiency with low energy consumption
- Low noise level
- Easy installation
Fan Coil CARRIER Inverter Slim 42SIC Standard height with cabinet & 42SIN Standard height without cabinet
In 5 available sizes as a hidden or visible type for mounting on the ceiling or floor, with cooling efficiencies from 0.62 to 3.8 kW and heating efficiencies from 1.09 to 4.86 kW.
With Touch LCD control with full PID control of the fan and thermostat and with EC fan motors.
With a depth of only 126 mm in the hidden type models and only 150 mm in the visible type models, they provide the possibility of placement anywhere on the floor or on the ceiling of the space, while they can be combined in any kind of installation and house.
Fan Coil Carrier Inverter Slim Low height (370mm) 42SIR with cabinet & 42SIL without cabinet
They are an ideal solution for home and commercial applications, thanks to their extremely low height, they can be combined with new or existing cooling and heating systems of all types.
The low-altitude models are available in 5 sizes, with cooling efficiency from 0.52 to 3.14 kW and heating efficiency from 0.78 to 3.91 kW.
Fan Coils ARISTON
ARISTON is the global expert in water heating and heating products providing worldwide efficient and high quality solutions for its comfort, with Italian design. New Fan Coils NIMBUS AQUASLIM are the perfect complement to heat pump systems and ARISTON hybrid systems. It thus offers consumers a full range of products with guaranteed comfort, adapted to any environment.
ARISTON Fan Coils Nimbus Aquaslim FS Floor
The Ariston Slim Nimbus Aquaslim Fs Inverter Fan coil (water terminal) is ideal for floor or ceiling installation and adapts to any environment. Used for heating and cooling and is fully compatible with Ariston heat pumps and hybrid systems.
In 4 available sizes, cooling efficiencies from 0.55 to 3.3 kW and heating efficiencies at 45 ° C from 0.57 to 3.81 kW and at 70 ° C from 1.89 to 6.98 kW.
Compact Design
Among the finest in the category, with their innovative design and high quality materials, they fit perfectly into any type of furniture.
Performance
Innovative technology and low pressure drops for high efficiency, guaranteed by Eurovent certification.
Maximum Comfort
Thanks to the tangential fan with continuous configuration, the air flow is produced with a low noise level. In addition, it is possible to activate the SILENT function which further reduces the noise, ensuring maximum comfort even at night.
Characteristics:
/ Touch screen (optional) with the possibility of integration on the machine
/ Wall control (optional) with the ability to control up to 30 units
/ Silent operation, to reduce noise to a minimum
/ Inverter DC technology
/ Tangential fan with staggered blades
/ Structure of electro-galvanized metal sheet with high strength
ARISTON Fan Coils Nimbus Aquaslim WH Wall
Ariston Slim Nimbus Aquaslim WH Inverter Fan coil (water terminal) is ideal for wall mounting and adapts to any environment. Used for heating and cooling and is fully compatible with Ariston heat pumps and hybrid systems.
In 4 available sizes, cooling efficiencies from 0.55 to 3.3 kW and heating efficiencies at 45 ° C from 0.57 to 3.81 kW and at 70 ° C from 1.89 to 6.98 kW.
Compact Design
Among the finest in the category, with their innovative design and high quality materials, they fit perfectly into any type of furniture.
Performance
Innovative technology and low pressure drops for high efficiency, guaranteed by Eurovent certification.
Maximum Comfort
Thanks to the tangential fan with continuous configuration, the air flow is produced with a low noise level. In addition, it is possible to activate the SILENT function which further reduces the noise, ensuring maximum comfort even at night.
Characteristics:
/ Touch screen (optional) with the possibility of integration on the machine
/ Wall control (optional) with the ability to control up to 30 units
/ Silent operation, to reduce noise to a minimum
/ Inverter DC technology
/ Tangential fan with staggered blades
/ Structure of electro-galvanized metal sheet with high strength
Thermostats Fan Coil
Fan coil thermostats are a key component for the efficient and comfortable temperature control of any indoor space. Choose from ANDRIANOS' top thermostat options that combine modern design, advanced features, and reliability, offering full control of fan coil systems in both residential and commercial installations.
FC600 – Fan Coil Controller SALUS Smart Home
Specific thermostat for controlling fan coil units.
Suitable for installation in hotels, offices and apartment buildings.
It allows you to reduce energy consumption while providing appropriate temperature and thermal comfort in the required spaces.
Optionally can be connected to Salus Smart Home and be controlled via the internet.
It can also operate autonomously (wired) as a local fan coil controller.
For more information and technical features see the thermostat at the Salus website.
EFAN-230 - Fan Coil Thermostat, WIFI, 230V – ENGO Smart Home
Specialized thermostat for controlling fan coil units.
Wireless communication via 2.4 GHz Wi-Fi and MOD-BUS RS-485 for seamless integration into Smart Home systems. Ideal for controlling fan coil units in both 2-pipe and 4-pipe systems.
It stands out for its innovative features that enhance the performance and flexibility of your heating and cooling system.
