Solar Collectors

The key role in the process of solar energy acquisition belongs to the solar collectors. They bind solar radiation (solar energy) and convert it into valuable heat (thermal energy). In place of the hose, the collector has an aluminum absorbent material. This binds the solar energy, heats and transfers the heat to the water passing through copper pipes, which rest on the absorbing. The special coating and the very efficient insulation ensure that as little solar heat as possible is lost. So simple and so effective!

The solar collector energy efficiency ANDRIANOS reaches percentages up to 69%, which are among the highest efficient in the world, top 5. In addition, exceptional insulations ensure low heat losses. Therefore offers its customers one of the highest quality and most competitive solar collector solutions in Europe.

ANDRIANOS SOLAR THERMAL SMALL BACKGROUND World TOP 10 solar collector

Solar Collectors ANDRIANOS

Advantages of ANDRIANOS Collectors

1. High quality materials

High quality of raw materials used, guarantee long life service and high efficiency.

2. Absorbing surface

The absorbing surface is made of Aluminium in 0.5mm thickness coated with high selective blue titanium treatment (α=95%, ε=5%). Selective treatment for the absorbers can be high selective Tinox Energy or Mirotherm Alanod.

3. Copper tubes

Water frame consisting of copper riser tubes Ø8x0,40mm and heaters-manifolds copper tubes dimension Ø22x0,7mm.

4. Laser welding

Laser welding guarantees perfect heat transfer from the absorbing surface to the water frame.

5. Pressure tests

All absorbers are tested at 15 bars and at 7 bars (2 consecutive pressure tests).

6. Glass cover of collector

The glass cover of the collector is prismatic tempered - security, low safety iron and thickness 3.2 mm.

7. Frame of collector

The frame of the collector is aluminum powder coated with special treatment for maximum resistance in coastal areas.

8. Back plate with high durability

The back plate is made of Aluzinc 0.4 mm thickness with high durability (7 times more resistant to corrosion than galvanized steel).

9. Sealing materials

Sealing materials used are silicon and polyurethane sealant for high resistance to extreme temperatures and for guaranteed water proofing.

10. Ventilation of collector

Properly placed 2 points ventilation of the collector.

11. Installation flexibility

The collector can be installed on a flat roof, tiled roof and in-roof.

Solar Collectors ANDRIANOS PREMIUM plus

Solar collector ANDRIANOS PREMIUM plus is a flat plate collector encasing hard type absorber with very high efficiency level. The efficiency factor is η_col=69% (based on absorber area) according to EN12975. Is the most efficient certified flat plate collector of Greece and one from the top 3 in the world. This collector has been tested in NCSR DEMOKRITOS laboratory in Greece and is certified with SOLAR KEY MARK.

Specifications:

Type of water frame: harp
The insulation consists of high quality rockwool of 50mm thickness and 100kg/m³density. Lateral insulation is rockwool 20mm thickness and 70kg/m³density. Cover material: AR low iron tempered glass transittance: 94%

iliakos sillektis andrianos ans solar premium plus tomi xaraktiristika

Available Models:

ANDRIANOS PREMIUM Plus 2,72m² vertical

Solar Collectors ANDRIANOS PREMIUM

Solar collector ANDRIANOS PREMIUM is a flat plate collector encasing hard type absorber with very high efficiency level. The efficiency factor is η_col=67% (based on absorber area) according to EN12975. Is one of the most efficient certified flat plate collector of Greece and one from the top 5 in the world. This collector has been tested in NCSR DEMOKRITOS laboratory in Greece and is certified with SOLAR KEY MARK.

Specifications:

Type of water frame: harp
The insulation consists of high quality rockwool of 40mm thickness and 50kg / m³density. Lateral insulation is rockwool 20mm thickness and 70kg/m³density. Cover material: AR low iron tempered glass transittance: 91,2%

Available Models:

ANDRIANOS AND-SOLAR Premium 2,72m² vertical
ANDRIANOS AND-SOLAR Premium 2,72m² horizontal

Solar Collectors ANDRIANOS PLUS only for in forced circulation solar systems

hliakos sullekths and solar maiandros 1

Solar collector ANDRIANOS PLUS is a flat plate collector encasing MEANDER (serpentine) type absorber with very high efficiency level, similar or higher than vacuum tubes collectors. Efficiensy values η_col=65% based on EN12975 standard (based on absorber area). This collector has been tested in SPF laboratory in Switzerland and is certified with SOLAR KEYMARK.

Specifications:

Type of water frame: MEANDER-SERPENTINE
The insulation consists of high quality rockwool of 50 mm thickness and 70kg / m³ density. Lateral insulation is rock wool 20 mm thickness and 100kg/m³density. Cover material: AR low iron tempered glass transittance: 91,2%

hliakos sullekths and solar arpa 3 iliakos sillektis andrianos anD solar plus tomi hliakos sullekths and solar maiandros 5

Available Models:

ANDRIANOS Plus 2,37m² vertical
ANDRIANOS Plus 2,72m² horizontal

Solar Collectors ANDRIANOS ECO - PLUS for thermosyphon solar systems or in forced circulation solar systems

hliakos sullekths and solar arpa 2

Solar collector ANDRIANOS ECO - PLUS is a flat plate collector encasing hard type absorber with very high efficiency level. Efficiensy values η_col=56% based on EN12975 standard (based on absorber area). This collector has been tested in NCSR DEMOKRITOS laboratory in Greece and is certified with SOLAR KEY MARK.

Specifications:

Type of water frame: harp
The insulation consists of high quality rockwool of 30mm thickness and 50kg / m³density. Lateral insulation is rockwool 20mm thickness and 60kg/m³density. Cover material: AR low iron tempered glass transittance: 91,2%

hliakos sullekths and solar arpa 3

Available Models:

ANDRIANOS ECO 2,37m² vertical
ANDRIANOS ECO 2,37m² horizontal

Download PDF with the leaflet of ANDRIANOS Solar Thermal Systems

COMPARISON TABLE OF FEATURES OF SOLAR PANELS ANDRIANOS

MODEL	ANDRIANOS PREMIUM PLUS	ANDRIANOS PREMIUM	ANDRIANOS PLUS	ANDRIANOS ECO PLUS
Type of water frame	Harp	Harp	Meander-Serpentine	Harp
Efficiency factor η_colaccording to ΕΝ 12975	69%	67%	65%	57%
Material of insulation	Glass wool	Rock wool	Rock wool	Rock wool
Thickness of insulation	50mm	40mm	50mm	30mm
Density of insulation	100kg/m³	50kg/m³	70kg/m³	20kg/m³
Thickness of Lateral insulation	20mm	20mm	20mm	20mm
Density of Lateral insulation	70kg/m³	70kg/m³	100kg/m³	60kg/m³
Cover material	AR Low iron, Tempered glass transmittance: 94%	AR Low iron, Tempered glass transmittance: 91,2%	AR Low iron, Tempered glass transmittance: 91,2%	AR Low iron, Tempered glass transmittance: 91,2%

Contact us for more information

Custom Solar Collectors (Customized)

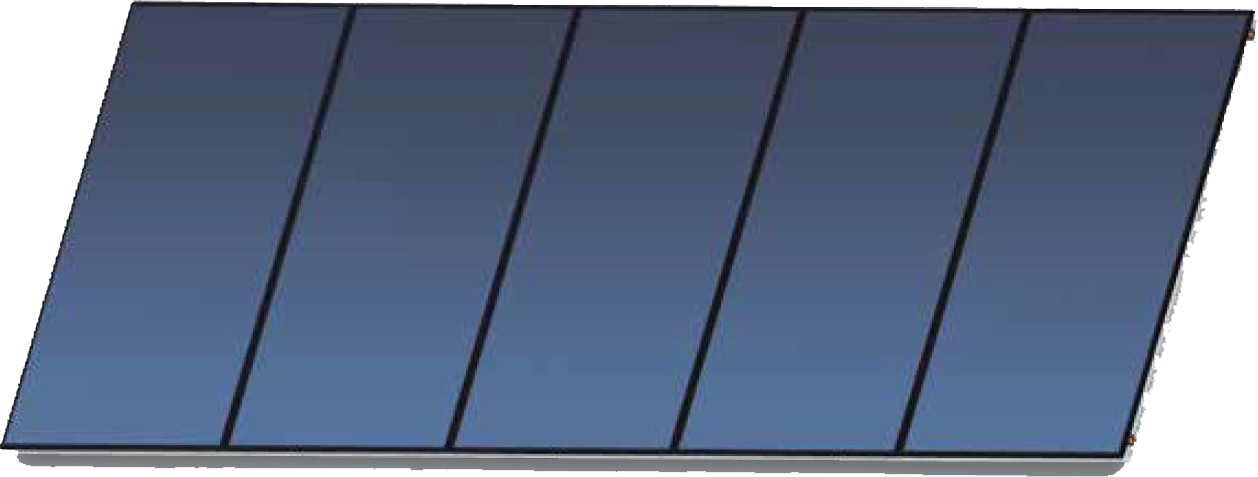

Large surface solar collectors

ANDRIANOS 25 years of experience combined with new technology provide us with a totally pioneering and genius product of solar heating on large installations with custom needs.

Custom Solar Collectors impresse with simple installation and are suitable for in or on the roof, as well as outdoor installation. The large surface collectors are the ideal alternative for larger installations to significantly reduce time for installation. Available in many different sizes.

Advantages

Collector with Solar Keymark certification*
High absorber performance - welding of the entire tube with the suction cylinder (with curves), greater efficiency thanks to the longer thermal length
Long life thanks to robust, weatherproof and weather-resistant construction
Simple and fast installation with patented hydraulic connections
Particularly flat construction (62 mm)
Glazed glass pane with cover strip
Large collection area with same surface area

* Solar Keymark was created to certify high quality solar products at European level. The aim is to eliminate barriers of trade and the use of high-quality solar heating products on the European market and also their subsidization.

The Solar Keymark is a voluntary certification for solar products by third-party. It informs the final consumer that a product has proven to meet the relevant European standards and other requirements.
Solar Keymark is used in Europe and is becoming increasingly important worldwide.

Solar collectors of large surface for on the roof installation

ηλιακοι συλλεκτες μεγαλης επιφανειας τοποθετησης πανω στη στεγη FA

Areas of use:

Placement on the roof
Placement on the front of the building
Independent installation
Ability to be delivered in special formats

Advantages:

Low heat losses
Simple and fast installation
10 years warranty
Proven quality
Long life
Resistance to weather conditions

Solar collectors of large surface for in the roof installation

Areas of use:

Placement on the roof
Placement on the front of the building
Independent installation
Ability to be delivered in special formats

Advantages:

Low heat losses
Simple and fast installation
10 years warranty
Proven quality
Long life
Resistance to weather conditions
