Solar Thermal Systems

ANDRIANOS has been engaged in solar thermal systems since 1994 and has products and solutions for all applications, from the simple cases of a solar heater, to the most demanding and modern systems. ANDRIANOS solar thermal products are designed and selected for high performance, quality, aesthetics, energy saving and low emissions. They are combined with the latest technologies and holistic know-how of ANDRIANOS to create Solar Thermal Systems for every requirement, from the smallest home or office to the largest professional-industrial building.

Since 2015 ANDRIANOS plans and manufactures thermosiphonic solar water heaters, flat panel solar collectors, solar tanks, solar stations and solar controllers, with the brand name "ANDRIANOS - World Leading Solar Thermal Technologies". It offers its customers one of the most quality and competitive solutions in Europe.

ANDRIANOS SOLAR THERMAL SMALL BACKGROUND World TOP 10 solar collector

The High-performance Solar Collectors AND-SOLAR Premium Plus are among the TOP 5 in the field of flat selective collectors in the world with η_col = 69% in accordance to EN12975 and η_col=65% according to ISO9806:2013. The solar collectors are manufactured in Greece and are certified by Solar KeyMark. Their materials are of high quality and guarantee long-lasting trouble-free operation. Check the relevant certificates:

ANDRIANOS Solar Tanks are compatible with all current heating systems. The space-saving construction structure, the simple layout, the modern design and high performance make them an ideal solution for reliable energy savings.

For the operation and adjustment of the entire solar thermal system, ANDRIANOS has cleverly integrated Swiss Solar Station packages, which are ready for connection to single or double piping with integrated TacoSetter Inline 130 balancing valve, safety group and ventilation unit. Together with the Solar Controllers of the leading European companies RESOL & SALUS, are responsible for the regulation and logging of the important parameters of the solar system, so they allow a comfortable energy management for many years.

Download the commercial Brochure of ANDRIANOS Solar Thermal Systems

Products for Solar Thermal Systems

	Manufacturer ANDRIANOS: High-performance Solar Collectors for advanced solar systems (solar thermal) for heating, hot water, heating swimming pools and solar cooling.
	Manufacturer ANDRIANOS: Solar Tanks for solar thermal systems for heating, hot water, heating swimming pools and solar cooling
	Manufacturer ANDRIANOS: Thermosiphonic Solar water heaters AND-solar by ANDRIANOS.
	Exclusive representative NMCGermany: Flexible insulated Inox piping and insulation, certified for solar systems
	Representative TACONOVA Switzerland: Solar Stations
	Representative TACONOVA Switzerland valves, thermostatic valves. Certified for solar systems
	Representative TACONOVA Switzerland: Thermostatic Valves for hot water

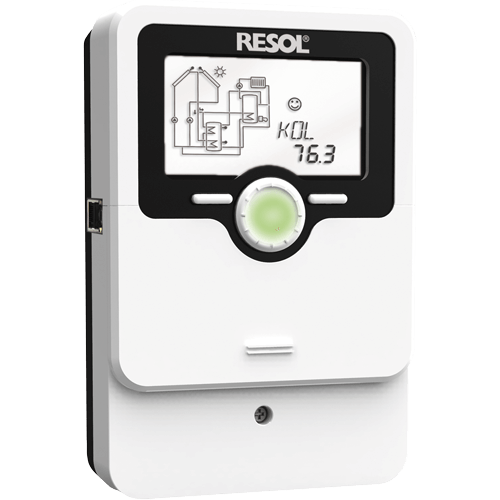

	Representative RESOL: Solar Controlers
	Representative SALUS: Solar Controlers

The Advantages of Solar Thermal Technology

solar-thermal-safety

Power Safety

The sun shines all year round for free! Vast quantities of pure en- ergy: inexhaustible, environ- mentally friendly and free.

solar-thermal

Environmentally friendly

A solar system saves a single household a tonne of CO2 each year.

solar-thermal-systems

Energy saving

ANDRIANOS solar systems can cover up to 85% of the energy needed in the form of hot water and heating.

solar-thermal-systems

Maturre Technology

Thanks to our mature and patented technology, we bring the sun into your home. ANDRIANOS solar plants combine maximum efficiency with minimum consumption.

solar-thermal-energy-saving

Low Cost

ANDRIANOS solar plants use solar energy to prepare hot water and support heating. Optimal insulation of the house can save up to 60% of the total heat demand due to free solar radiation.

solar-systems

Service & Maintenance

In addition to quality and innovation, it is also the customer service that has made us one of the leading companies in the field of solar heating. Service does not end at ANDRIANOS with the purchase or installation of a solar installation.

solar-thermal-systems

Proven Quality

Certificates and Approval Seals guarantee that ANDRIANOS products meet the strictest quality criteria. From 2015 all AND solar collectors feature the Solar Keymark, which is the globally recognized quality certificate in Europe.

solar-thermal-systems

Guaranteed Quality

we offer 10 years warranty on all factory-made solar panels. All our accumulators are offered with a 5 year warranty.

Contact ANDRIANOS Team for more information about solar collectors

Solar Thermal Systems

A solar thermal system includes solar collectors, one or more solar tanks and individual systems, such as the solar station with its circulator and controller and sometimes the plant for hot water.

Collectors must be high-performance, either are flat with a selective coating on their surfaces, or consisting of vacuum tubes where the collectors' surface is in vacuum for insulation purposes.

The capacity of the solar tank, according to the model we choose, reaches up to 2.000 lt for domestic applications. Domestic hot water (DHW) is usually manufactured with a direct production station when the demand is high via an external exchanger and the corresponding circulators.

In addition, a complete installation must be accompanied by a heating system that will cover the heat demand when the stored energy of the tank is not enough. The condensing boilers with oil or gas or alternatively the use of an air /or water heat pump are the ideally for solar-assisted heating systems are considered.

THE MAIN PARTS OF A SOLAR THERMAL SYSTEM

Solar Collector

Solar Collector

The main role in the process of solar energy acquisition belongs to the solar collectors. They bind solar radiation and convert it into valuable heat. In place of the hose, the collector has an aluminum absorbent material. This binds the sun, heats and transfers the heat to the water passing through the absorbent material. The special coating and the very efficient insulation ensure that as little solar heat as possible is lost. So simple and so effective! The solar collector energy efficiency is usually over 60%. Exceptional insulations ensure low heat losses.

Solar Collectors AND-solar

Advantages of AND Solar Collectors

1. High quality of raw materials used, guarantee long life service and high efficiency.
2. The absorbing surface is made of Aluminium in 0.5mm thickness coated with high selective blue titanium treatment (α=95%, ε=5%). Selective treatment for the absorbers can be high selective Tinox Energy or Mirotherm Alanod.
3. Water frame consisting of copper riser tubes O8x0.40mm and heaters-manifolds copper tubes dimension O22x0.7mm. The type of copper tubes is DHP according to EN12449 standard produced by Halcor.
4. Laser welding guarantees perfect heat transfer from the absorbing surface to the water frame.
5. All absorbers are tested at 15 bars and at 7 bars (2 consecutive pressure tests).
6. The glass cover is prismatic tempered - security, low iron 91,5% transparency glass 3.2 mm.
7. The frame of the collector is aluminum powder coated with special treatment for maximum resistance in coastal areas.
8. The back plate is made of Aluzinc 0.4 mm thickness with high durability (7 times more resistant to corrosion than galvanized steel).
9. Sealing materials used are silicon and polyurethane sealant for high resistance to extreme temperatures and for guaranteed water proofing.
10. Properly placed 2 points ventilation of the collector.
11. The collector can be installed on a flat roof, tiled roof and in-roof.

ANDRIANOS AND-solar PREMIUM Plus collectors.

ANDRIANOS model AND-solar PREMIUM Plus is a flat plate collector encasing hard type absorber with very high efficiency level. The efficiency factor is η_col=69% (based on absorber area) according to EN12975 and η_col=65% according to ISO9806:2013 making this collector the most powerfull certified collector of Greece and one of TOP 5 best flat plate collectors of world. This collector has been tested in NCSR DEMOKRITOS laboratory in Greece and is certified with SOLAR KEY MARK.

Specications:

-Type of water frame: harp
-The insulation consists of high quality rockwool of 50mm thickness and 100kg/m³density. Lateral insulation is rockwool 20mm thickness and 70kg/m³density. Cover material: AR low iron tempered glass transittance: 0.94

Available Models:

- ANDRIANOS AND-solar PREMIUM Plus 2,72m² vertical

ANDRIANOS AND-solar Premium collectors.

ANDRIANOS model AND-solar Premium is a flat plate collector encasing hard type absorber with very high efficiency level. The efficiency factor is η_col=67% (based on absorber area) according to EN12975 and η_col=63% according to ISO9806:2013, making this collector the most powerfull certified collector of Greece and one of TOP 15 best flat plate collectors of world. This collector has been tested in NCSR DEMOKRITOS laboratory in Greece and is certified with SOLAR KEY MARK.

Specications:

-Type of water frame: harp
-The insulation consists of high quality rockwool of 40mm thickness and 50kg / m³density. Lateral insulation is rockwool 20mm thickness.

Available Models:

- ANDRIANOS AND-solar Premium 2,72m² vertical
- ANDRIANOS AND-solar Premium 2,72m² horizontal

ANDRIANOS AND-solar Plus collectors can be installed only in forced circulation solar systems.

ANDRIANOS model AND-solar Plus is a flat plate collector encasing MEANDER (serpentine) type absorber with very high efficiency level, similar or higher than vacuum tubes collectors. Efficiensy values η_col=65% based on en12975 standard (based on absorber area). This collector has been tested in SPF laboratory in Switzerland and is certified with SOLAR KEYMARK.

Specications:

- Type of water frame: MEANDER-SERPENTINE
- The insulation consists of high quality rockwool of 50 mm thickness and 70kg / m³ density. Lateral insulation is rock wool 20 mm thickness.

Available Models:

- ANDRIANOS AND-solar Plus 2,37m² vertical
- ANDRIANOS AND-solar Plus 2,72m² horizontal

ANDRIANOS AND-solar ECO collectors can be installed in thermosyphon solar systems or in forced circulation solar systems.

ANDRIANOS model AND-solar ECO is a flat plate collector encasing hard type absorber with very high efficiency level. Efficiency values η_col=56% based on EN12975 standard (based on absorber area). This collector has been tested in NCSR DEMOKRITOS laboratory in Greece and is certified with SOLAR KEY MARK.

Specications:

-Type of water frame: harp
-The insulation consists of high quality rockwool of 30mm thickness and 50kg / m³density. Lateral insulation is rockwool 20mm thickness.

Available Models:

- ANDRIANOS AND-solar ECO 2,37m² vertical
- ANDRIANOS AND-solar ECO 2,37m² horizontal

Contact ANDRIANOS Team for more information about solar collectors

Custom Solar Collectors

SOLID COLLECTOR OF LARGE SURFACE

The large surface collector is the ideal alternative for larger installations to significantly reduce time for installation. This solar collector is available in many different sizes and is suitable for installation in or on the roof as well as outdoor installation.

ADVANTAGES OF SOLAR COLLECTORS

+ Collector with Solar Keymark certification*

+ High absorber performance - welding of the entire tube with the suction cylinder (with curves), greater efficiency thanks to the longer thermal length

+ Long life thanks to robust, weatherproof and weather-resistant construction

+ Simple and fast installation

+ Particularly flat construction (62 mm)

+ Glazed glass pane with cover strip

+ Large collection area with same surface area

* Solar Keymark was created to certify high quality solar products at European level. The aim is to eliminate barriers of trade and the use of high-quality solar heating products on the European market and also their subsidization.

The Solar Keymark is a voluntary certification for solar products by third-party. It informs the final consumer that a product has proven to meet the relevant European standards and other requirements.
Solar Keymark is used in Europe and is becoming increasingly important worldwide.

SOLAR COLLECTORS OF LARGE SURFACE ON THE ROOF

AREAS OF USE:

Placement on the roof
Placement on the front of the building
Independent installation
Ability to be delivered in special formats

ADVANTAGES OF THE PRODUCT:

Low heat losses
Simple and fast installation
10 years warranty
Proven quality
Long life
Resistance to weather conditions

LARGE SOLAR COLLECTORS FOR IN ROOF INSTALLATION

AREAS OF USE

Placement on the roof
Placement on the front of the building
Independent installation
Ability to be delivered in special formats

ADVANTAGES OF THE PRODUCT

Low heat losses
Simple and fast installation
10 years warranty
Proven quality
Long life
Resistance to weather conditions

Contact ANDRIANOS Team for more information about solar collectors

Solar Tanks

Solar Tanks

The heart of the Solar Thermal system: The solar boiler (or tank) collects hot water. From this reserve the water installation and heating of the house is supplied.

Solar boiler systems of ANDRIANOS are compatible with all kinds of heating systems. The space-saving construction structure, simple and fast installation, modern design and high performance make them an ideal solution for reliable energy savings. For Example : A 1.000 lt boiler + 18 m2 of solar collectors = g 5.800 kWh Energy savinper year.

Solar Boilers AND-solar

ANDRIANOS - Single coil hygienic combi tank AND-solar FS1

Combined tank: Buffer storage tank made of low carbon steel with integrated stainless-steel DHW coil-in-tank storage. The domestic water heats up instantaneously as it flows through the large surface stainless coil. Thus water is delivered hot while still fresh and clean. The added heat exchanger coil enables the tank to use energy from different heat sources.

Removable insulation with thickness 100mm and outer casing of PVC with RAL9006 color.
Multi-position mounting of temperature sensor.
Hot water generation based on the flow-through principle guarantees sediment-, bacteria-and contamination-free hot water.
Heat exchanger coil.
All threads are internal.
Easy installation.
Optional kit for electric heating with nominal power 3Kw, 4.5Kw, 6Kw, or 7.5Kw
Safety valve 8bar,thermometer and kit electric heating are optional

Available models 500 lt, 800lt, 1000lt and 1500lt

Advantages:

Simple and cost-effective domestic hot water heating, especially with the use of a heat pump
Hygienic water heating due to a special corrugated stainless-steel pipe
Space-saving construction
It is combined with all conventional heating systems.

Available in 4 types of insulation:

with 75mm insulation from HVI hard foam composite material (Energy Class A)
with 75mm PU hard foam insulation (Energy Class B)
with 160mm Green Line, 140mm thick insulation, and 5mm mantle (Energy Class B)
with 120mm Green Line, 100mm thick insulation, and 5mm mantle (Energy Class C)

Solar Quality made in Germany

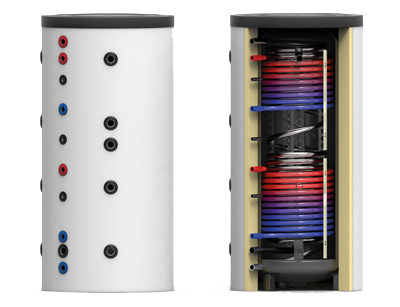

ANDRIANOS - Double coil hygienic combi tank AND-solar FS2

Combined tank: Buffer storage tank made of low carbon steel with integrated stainless-steel DHW coil-in-tank storage. The domestic water heats up instantaneously as it flows through the large surface stainless coil. Thus water is delivered hot while still fresh and clean. The two added heat exchanger coils enable the tank to use energy from multiple heat sources.

Removable insulation with thickness 100mm and outer casing of PVC with RAL9006 color.
Multi-position mounting of temperature sensor.
Hot water generation based on the flow-through principle guarantees sediment-, bacteria-and contamination-free hot water.
Two heat exchanger coils.
All threads are internal.
Easy installation.
Optional kit for electric heating with nominal power 3Kw, 4.5Kw, 6Kw, or 7.5Kw
Safety valve 8bar,thermometer and kit electric heating are optional
Available models 500 lt, 800lt, 1000lt and 1500lt

ANDRIANOS - Double coil water heater AND-solar SSP for indirect heating

Floor standing water heater with heat exchanger for indirect heating. The heat exchanger enables the tank to utilize two external sources of renewable energy, such as a solar system and a biomass burning boiler.

High efficiency thermal insulation and outer casing of PVC with RAL 9006 color.
Multi-position mounting of temperatures sensor.
Complex corrosion protection realized by means of titanium enamel and anode protection.
All threads are internal.
Easy installation.
Convenient inspection opening
Two heat exchangers enables the tank to utilize an external sources of renewable energy, such as a solar system and a biomass boiler.
Optional kit for electric heating with nominal power 3kw, 4,5Kw, 6kw, or 7,5Kw
Available models from 150 lt to 1.500lt

Water heaters AND-solar SWP with high efficiency heat exchanger coil. Suitable for heat pump installations.

AND-solar SWP containers with a very large surface area suitable for solar hot water heating and heat pump systems with a large number of consumers.

Specifications:
• High efficiency insulation and outer casing of PVC with RAL9006 color.
• Multi-position mounting of temperature sensor.
• Complex corrosion protection realized by means of titanium enamel and anode protector.
• All threads are internal.
• High efficiency heat exchanger coil stretching through the entire inner volume of the tank (for models SWP N).
• Two coaxial heat exchanger coils with increased surface for better efficiency (for models SWP 2N).
• Easy installation.
• Convenient inspection opening.
• Optional kit for electric heating with nominal power 3 Kw -4,5 Kw -6 Kw -7,5 Kw
• Test pressure of tank: 15bar , Test pressure of coil: 25bar

AND-solar SWP N with one exchanger:150lt, 200lt, 300lt,400lt,500lt

AND-solar SWP 2N with two exchangers: 300lt,400lt,500lt

Contact ANDRIANOS for more information about solar tanks

Solar Stations

Solar Stations

The solar station is the "heart" of the solar thermal system, since it is responsible for the proper operation and synchronization of all the individual components.

A solar station consists of the solar controller, the solar pump, a safety valve, manometer and thermometer, as well as non-return valves.

The operation of the solar station lies in the central control of the solar thermal system: Through sensors placed on the solar panels and the solar boiler, the solar controller gives the appropriate commands for the circulation or not of the water in the system. At the same time, the system's operation is recorded on a memory card for better parameterization and immediate monitoring of system performance.

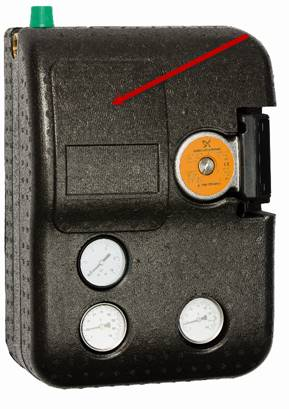

Solar thermal stations Taconova (Switzerland)

Τaconova Solar Stations are provided ready for connection to single or double piping with integrated TacoSetter Inline 130 balancing valve, safety valve and ventilation unit, without solar controller.

Solar Station with single line Solar Station with two lines

Advantages of Taconova Solar Stations:

- Functional control and hydraulic balancing without measurement devices, diagrams or tables, thanks to the Tacosetter Inline 130 with accuracy of reading owing to glycol-calibrated reading scale
- Multifunctional ball valve makes it much easier to fill and drain the system
- Integrated backflow preventer prevents incorrect circulation
- Pump can be changed easily (lockable on the intake and output sides)
- Safe and low maintenace
- Solar cycle can be divided into two half-circuits*
- Permanent automatic ventilation*

Functions of Taconova Solar Stations:

- In combination with a solar controller, the solar liquid heated in the collector is transported to the hot / drinkable water storage tank via a heat exchanger with the help of the solar station.
- The integrated balancing valve enables the volume flow to be adjusted to the performance of the collector or heat exchanger and checked.
- The flow measurement of the balancing valve is based on the principle of a float with return spring.
- The flow meter is integrated into the pump.
- The regulating screw on the flow meter is used to adjust the flow. The index mark is the lower edge of the float element.

Taconova Solar Stations Equipment:

- TacoSetter Inline 130 integrated balancing valve with direct display of the set flow rate in lt / min, screen already calibrated for medium viscosity of 2.33mm2 / s
- Shut-off valve with intergrated metal backflow preventer
- Circulating pump Grundfos PM2 15-105 / 130
- Solar thermometer with 0-160 ° C display range; installed in the safety pipe
- Mounting material
- Manometer*

Taconova Solar Stations Materials:

- Valve housing: brass
- Internal parts: stainless steel, brass, plastic
- Window: borosilicate
- O-ring seals: EPDM
- Flat seals: suitable for use in solar energy systems and resistant to high temperatures
- Carrier / hood: EEP
- Ventilation flask: black steel, stove enameled

*Available only in Solar Station with two lines

Contact ANDRIANOS for more informations about Solar Stations

Components & Accessories for Solar Systems

For the safe and efficient operation of the Solar Thermal System, apart from the solar panels, the solar boiler, the solar stations and the controller, many other accessories are equally important, such as:
