Assolo heat recovery ventilation systems are created with durable materials of high quality and aesthetics, with attention to design and continuous research. They offer excellent technical performance and functionality to the ultimate customer satisfaction.
Heat Recovery Ventilation Systems Assolo - Available Products
ASSOLO 91 - 1.0
ASSOLO TE-22 1.0
ASSOLO 91 - 2.0
ASSOLO 91 VMC Φ100
ASSOLO 91 - 1.0
Air-to-air heat recovery exchanger Assolo 91-1.0, suitable for a single-room and for replacing an existing fan with minimal intervention. It ensures the supply of clean fresh air, by extracting and supplying air alternately, while at the same time it maintains the heat of the room, thanks to the ceramic exchanger it has with an efficiency of up to 90%.
Also available in the Assolo TE-22 1.0 model with remote control.
Features:
- Energy Class Α
- Ceramic exchanger with heat recovery up to 90%.
- Adjustable suction speed up to 60 m3/h.
- Double separate inlet and outlet air filters, washable and easily removable.
- Reduced power consumption (5W).
- Two levels of speed.
- It does not require drainage of condensates.
- The air duct can be extended from a tube of the same diameter up to 3m. For this air duct when a bypass is necessary, the maximum length of the duct will be 2.5m (including a 90° angle).
Advantages:
- Easy maintenance: The device has been designed to make maintenance work easier in order to optimise inspection and cleaning.
- Easy cleaning: the ability to disassemble each part of the cleaning product makes the cleaning process quick and easy. With a simple rinse under running water (for non-electrical components such as filters) and an easy pass over other surfaces, the unit will easily be ready for a regular cleaning.
- Adjusting the length of the pipe: The variety of walls in terms of thickness, makes it necessary to use a flexible - telescopic pipe: the Assolo can be reduced from the maximum length of 40cm to what is required, with a minimum of 25cm.

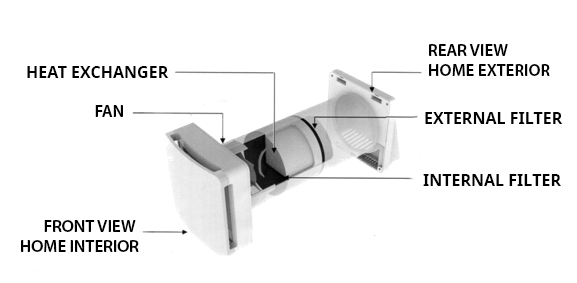

Product cutting
Check ASSOLO at ESHOP of ANDRIANOS
ASSOLO 91 - 2.0
Air-to-air heat recovery exchanger Assolo 91-2.0, has the same features as the Assolo 91 - 1.0, with the additional possibility of installing more units, which operate in pairs. Some units ensure the supply of fresh air to the room and the other units extract air from the room. In this way, even more efficient and balanced ventilation is achieved.
Additional features:
- Night mode (silent operation at low speed)
- Equipped with visual indication of functions and warning for filter cleaning.
- Expansion possibility up to 16 units.
- Optional: CO2 detector integrated in the special wall-mounted controller.
Available on request

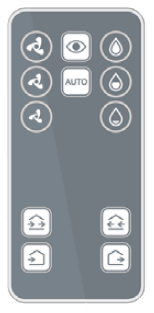

Remote control 2.0
- Auto mode: The device will operate in automatic mode with factory settings creating an ideal environment.
- Surveillance: the device will remain stopped but active thanks to its sensors. In the event of a change in humidity values, it will start working until the values fall below the pre-set limit.
- Air supply mode: The device takes in air when installed as a stand-alone unit, otherwise in case of multiple units, all devices will take in air at the same time.
- Air extraction mode: The device will extract air when installed as a stand-alone unit, otherwise in case of master-slaves, all devices will extract air at the same time.
- Air flow mode: The function is useful and practical if the devices are at least 2 . In the same room by activating this function, the devices will create an airflow that only provides air intake and exhaust simultaneously for the desired period of time, while keeping the environment always balanced.
- Humidity sensor with 3 levels: low (40%), medium (55%) and high (70%).
- Speed: 3 pre-set speed adjustment levels.
Assolo 91 VMC Φ100
The smallest version of ASSOLO with VMC ASSOLO F100 cross-section, for existing installations, usually bathrooms with a pipe cross-section of Φ100. It has the same characteristics as the Assolo 91 - 1.0, with an air flow of up to 30m3/h and noise levels of 29 dB(A).
Available on request
