Continuing the supply of equipment and accessories for LPG networks, ANDRIANOS undertook the installation of the LPG network and the connection with the bottles in the steakhouse "Ledolemono" in Kalamata.
The benefits of the restaurant from the upgrade of the gas network:
- The absolute safety of staff and customers even in unlikely cases such as fire or earthquake.
- Full compliance with the technical regulation, thus avoiding fines by the competent authorities.
- Uninterrupted operation and long life of the network due to the high quality of our materials and installers.
- Regular annual maintenance - by EOT-EXE - as required by the regulation.
- Immediate in case of possible failures or undesirable situations due to the 24-hour operation of our special team of engineers and licensed technicians.
The certified network installation consists of:
- Collector for three Italian gas cylinders Italy.Includes: Safety valve, pressure gauge, valves with integrated non-return valves, certified according to UNI 7131, with one outlet at the bottom.
- Overflow valves GOK Germany, which prevent uncontrolled gas leakage in the event of a large leak in the rubber joints, which may occur for example due to fire or breakage.
- Certified Plastic Flexible couplings heavy type PB 30 GOK Germany suitable for connecting the bottles to the collector.
- One stage pressure regulator PN 16 according to DIN 4811, TEIL 3, with integrated SBV pressure relief valve, 37mbar.
- Certified stainless steel flexible spiral Witzenmann Germany with socket type quick connector for connecting kitchen appliances.
- Flexible stainless steel pipe specially designed for internal gas distribution networks Witzenmann Germany certified according to DIN EN 15266. CE mark.
- Technocontrol Italy Electromagnetic Gas Valve 3/4 '' 550mbar, N.O, to cut off the gas supply when a leak of explosive and toxic gases is detected in the area.
- Panic Button watertight for electromagnetic normally open or closed type with boutonniere.
- Two Autonomous Gas Detectors of Technocontrol Italy, IP65 industrial type, 230Vac input.
The specialized team of licensed gas engineers and technicians ensured the smooth, completely safe and efficient operation of the network according to the manufacturer's specifications. EOT - EXE (Special Group of Energy Saving Techniques), will undertake the necessary annual maintenance for the proper operation of the network, thus providing the staff and customers of the store with absolute security.

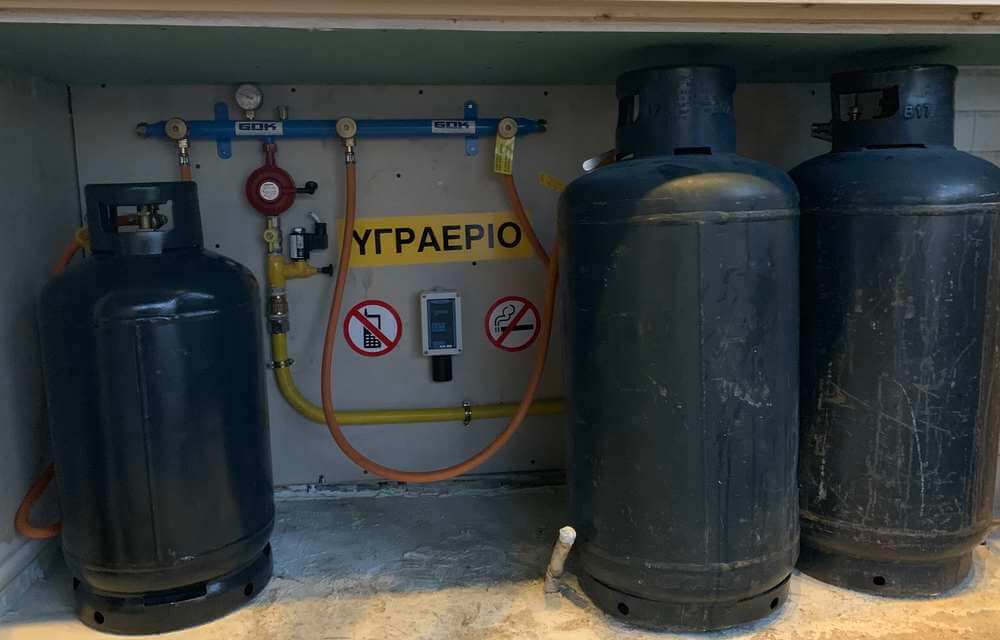

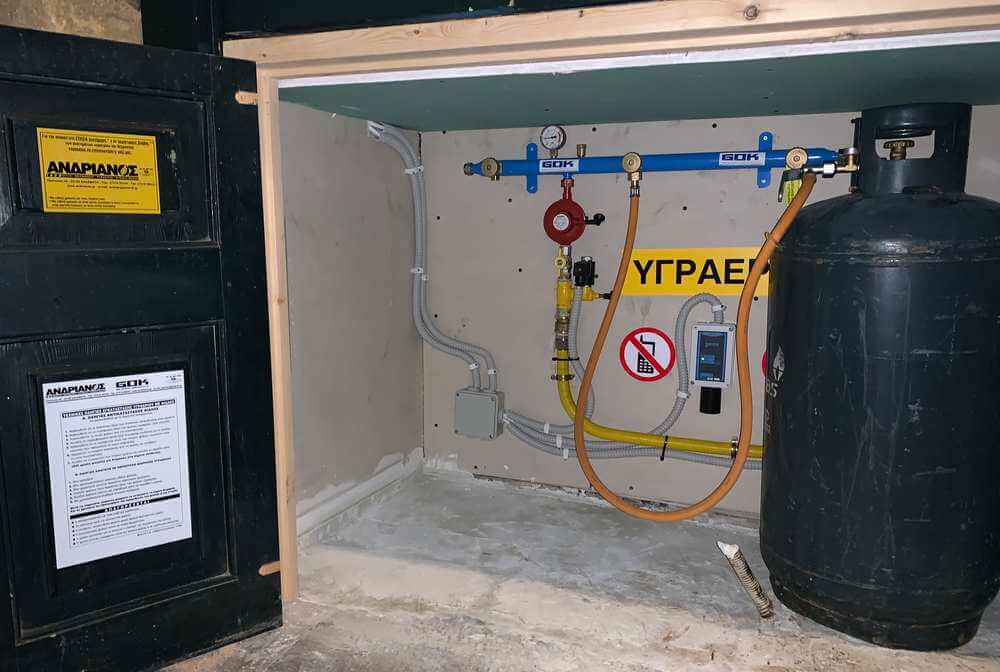

Internal installation for kit of three bottles

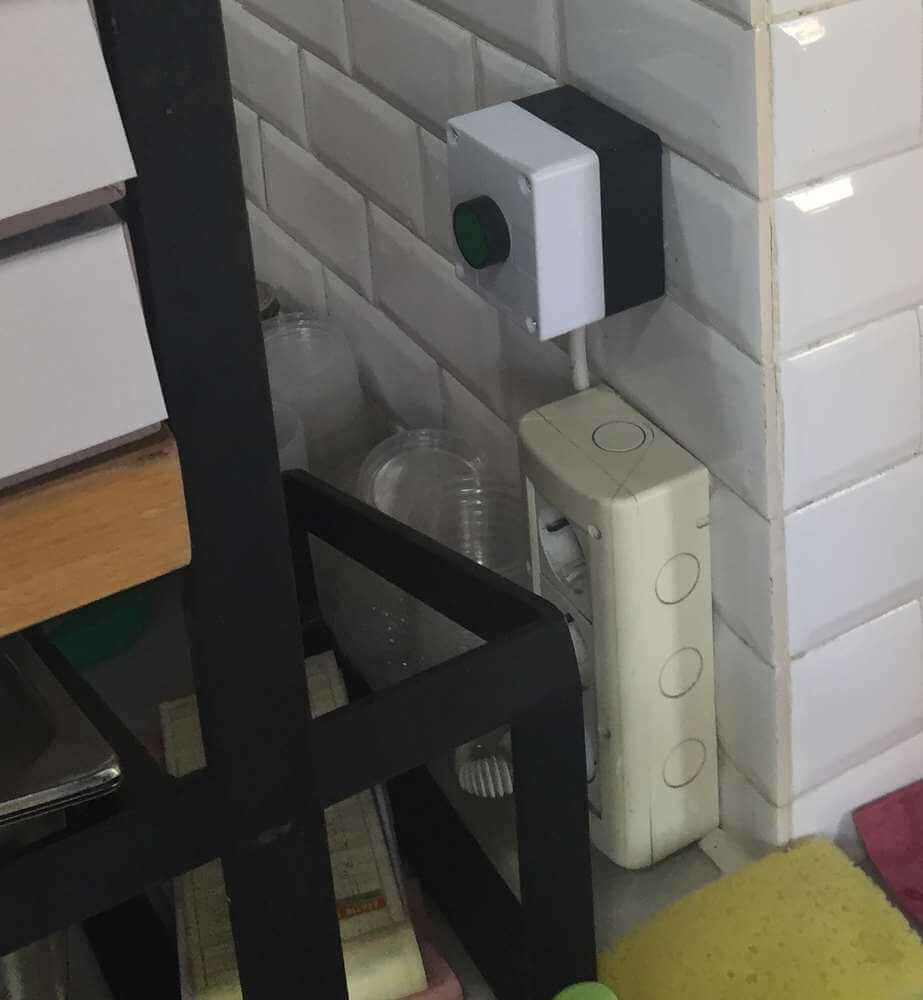

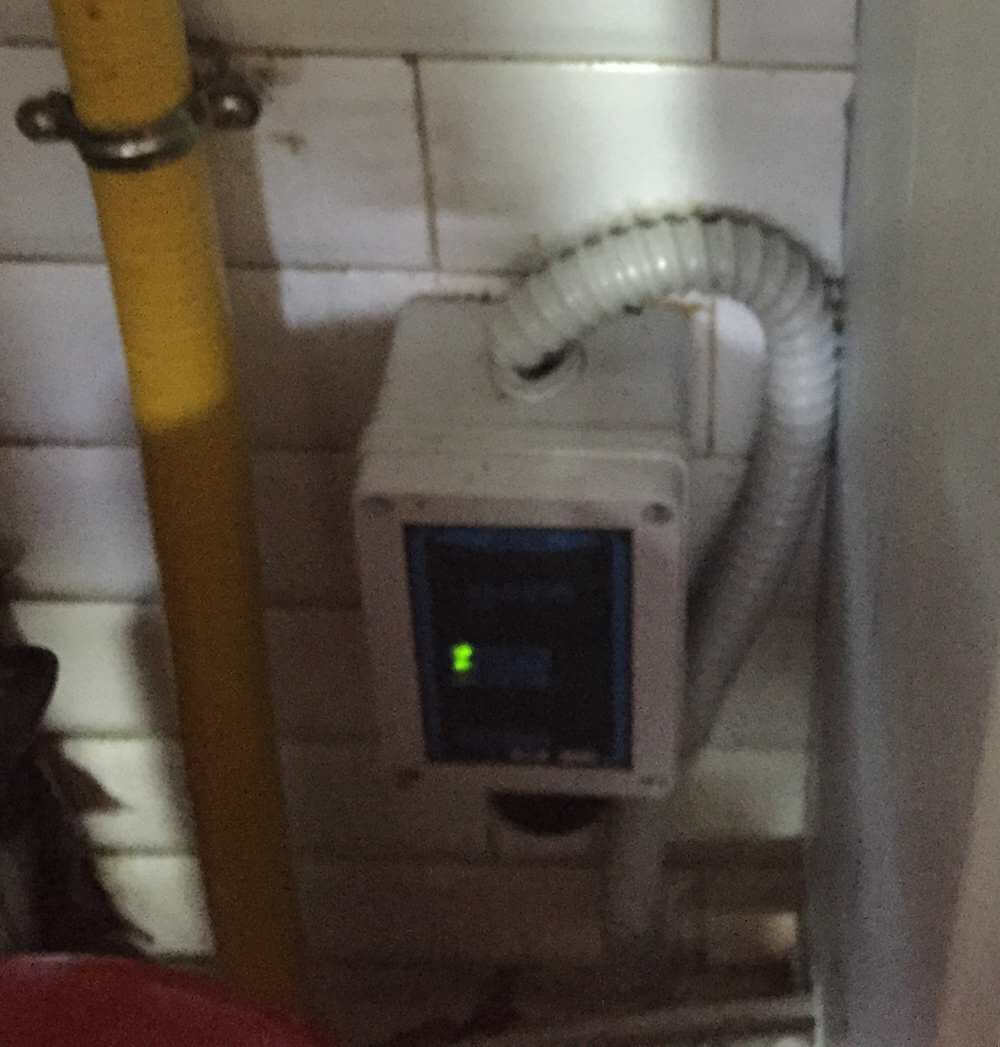

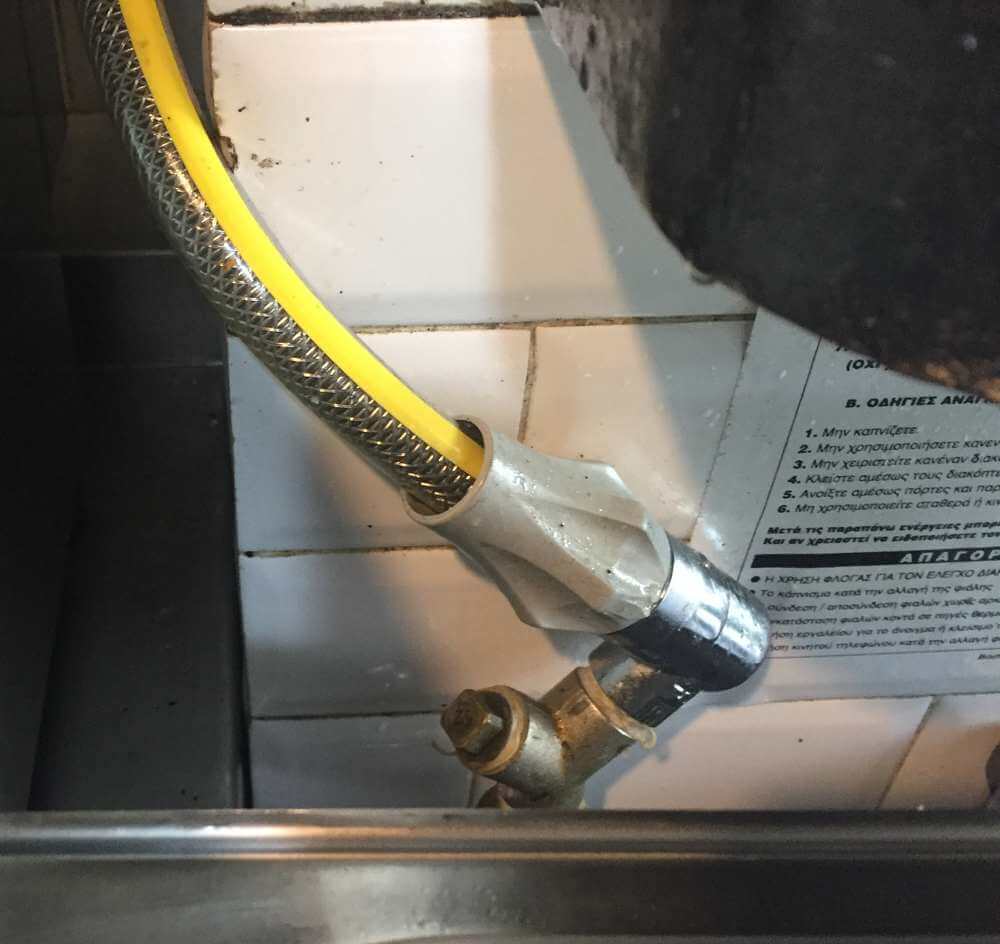

From left: Stainless steel flexible interior and quick coupler, Gas detector IP65 color use, Panic Button

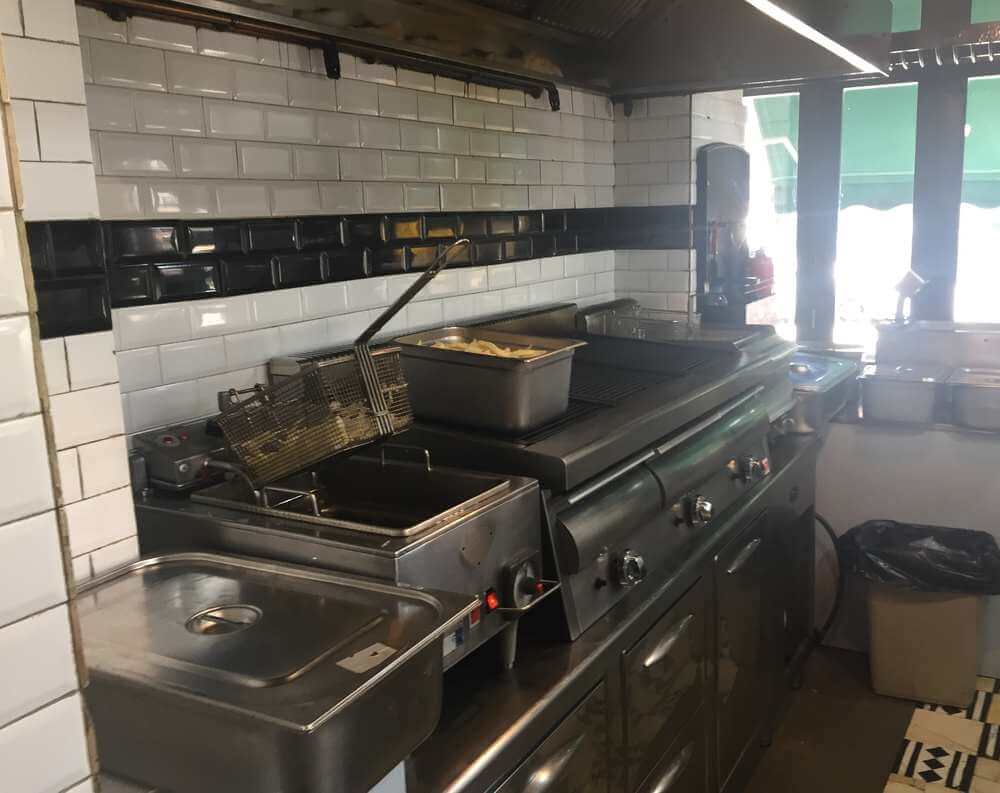

The kitchen of the grill "Ladolemono" now has a quality and safe gas network from ANDRIANOS
