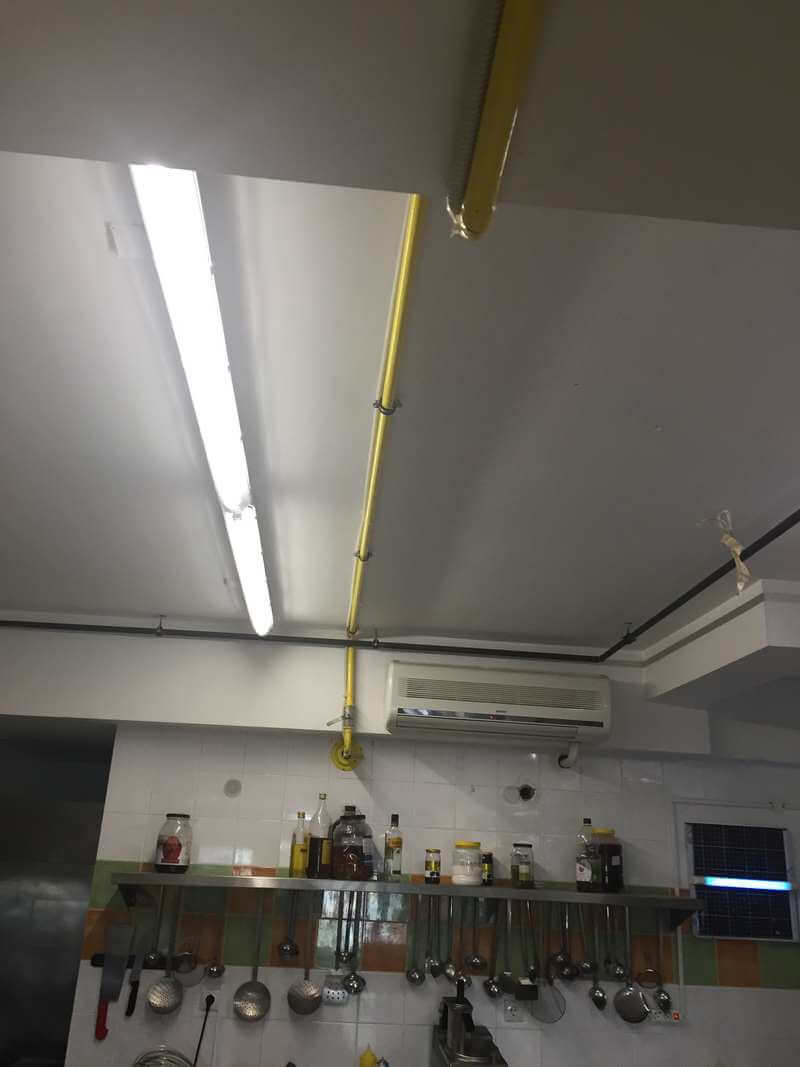

In 2012, ANDRIANOS undertook the supply and installation of the state-of-the-art gas network of IEK Horizon of BOUGA Schools, in Kalamata. A project that was completed with respect to the special requirements of the standard educational institution and based on the quality and absolute safety of LPG installations following the strictest technical specifications required by modern technical legislation.
The benefits of IEK from the upgrade of the LPG network:
- The absolute safety of staff and students even in sophisticated cases such as fire or earthquake.
- Full compliance with the technical regulation, thus avoiding fines by the competent authorities.
- Uninterrupted operation and long life of the network due to the high quality of our materials and installers.
- Regular annual maintenance - by EOT-EXE - as required by the regulation.
- Immediate in case of possible damages or undesirable situations due to the 24-hour operation of our special team of engineers and licensed technicians.
This time E.OT. - EXE, the Special Group of Energy Saving Technicians proceeded to the necessary improvements and additions of components that will help increase the life of the network, but also to prevent unforeseen costly mechanical failures.
Specifically, the additions to the LPG network concerned:

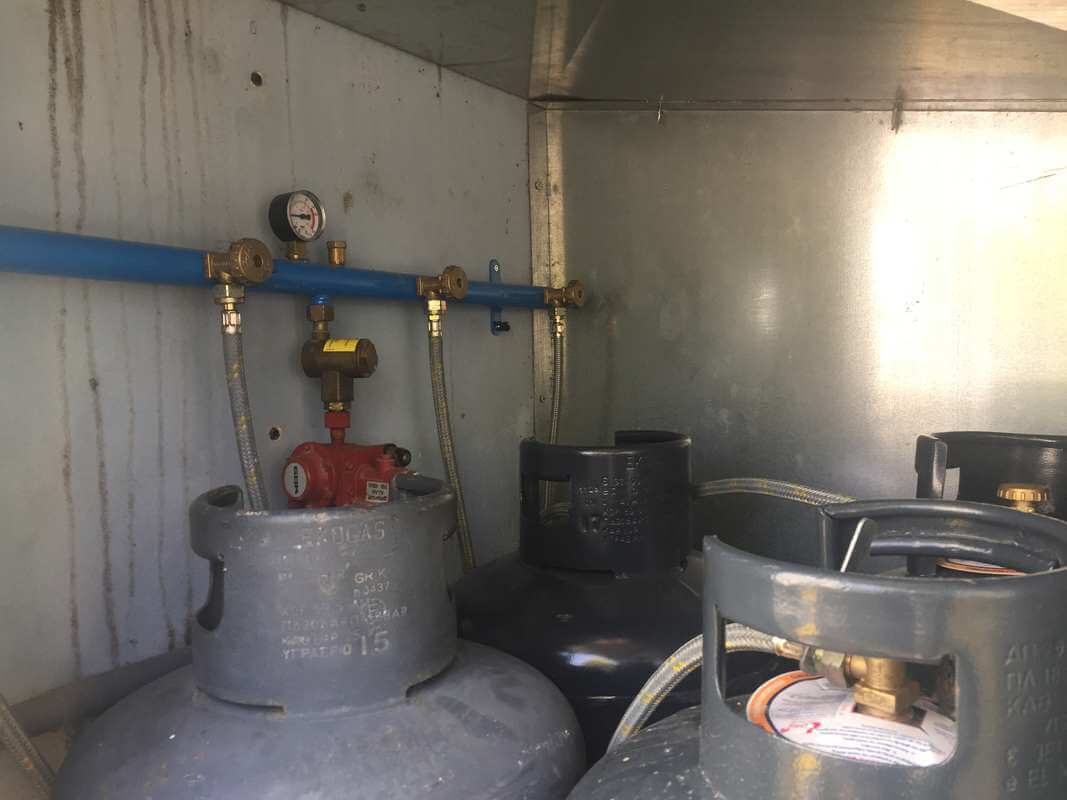

- 1st stage regulator 24 Kgr/h, 0,7 bar with integrated SAV shut-off valve and SBV pressure relief valve, PN 25 GOK Germany.
- 2nd stae regulator 12 Kgr/h, 37 mbar with integrated SAV shut-off valve and SBV pressure relief valve, GOK Germany.

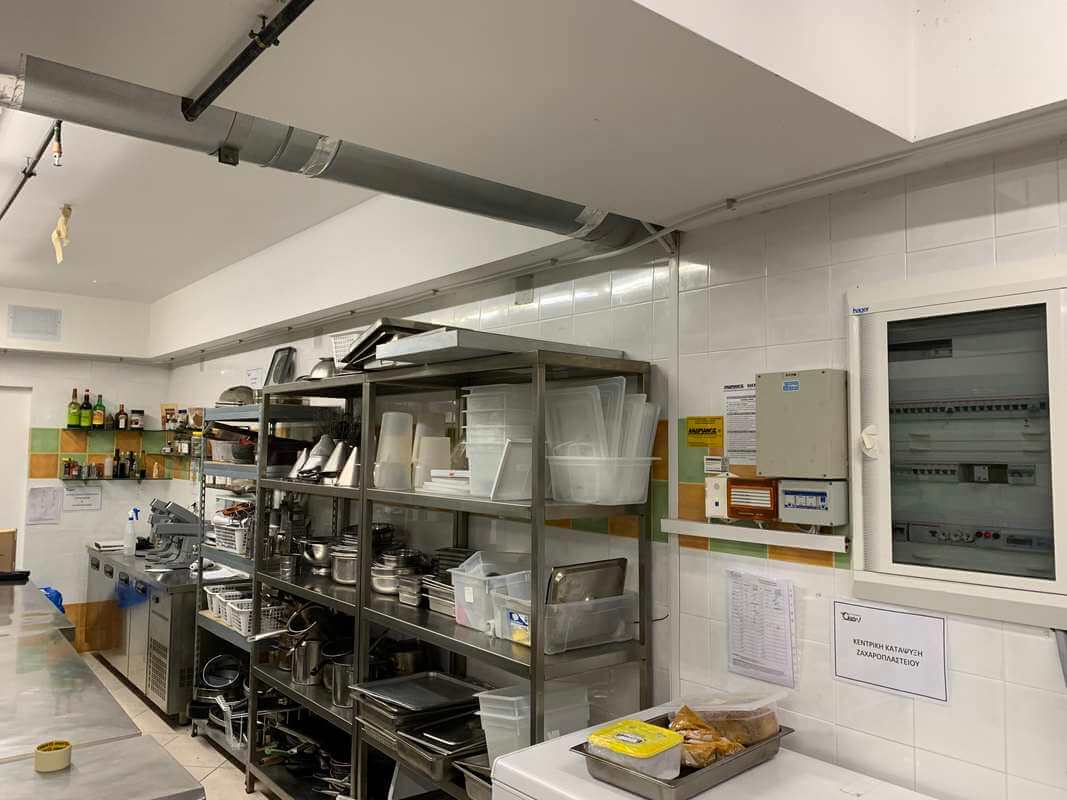

- Three additional Catalytic Sensors for the LPG Detector of industrial type SI653K, 230V IP65 Technocontrol Italy.

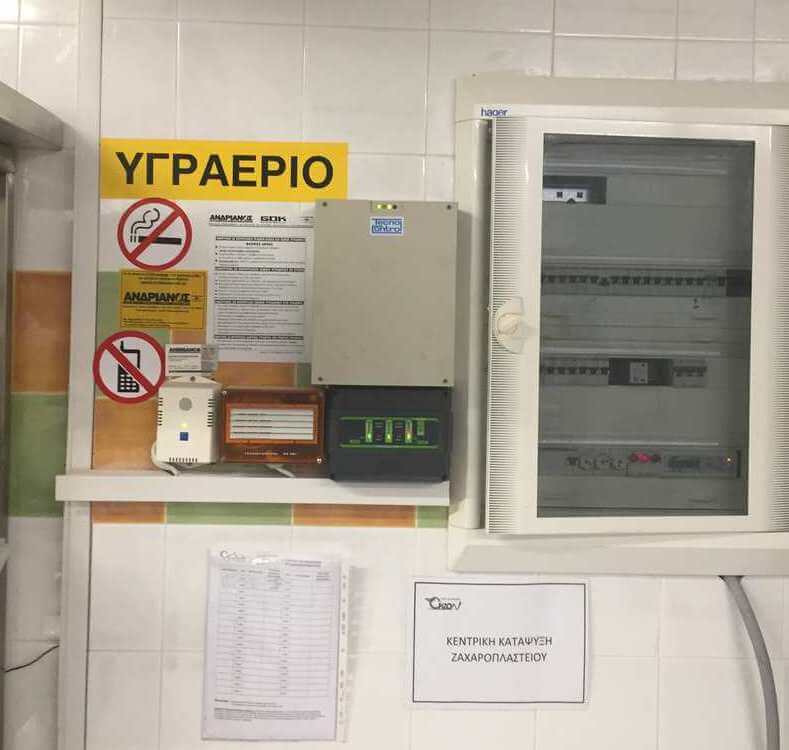

- Panel with SE293K screen for 3 catalytic sensors IP 65 Technocontrol Italy.

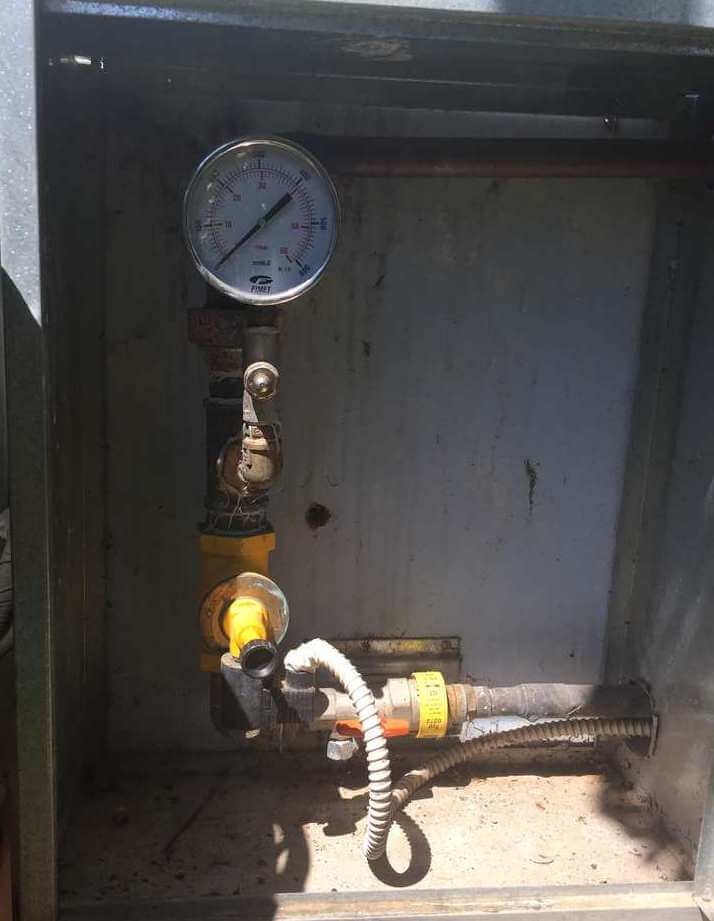

- Gas pressure manometre DN63 0-60mbar Technogas Italy

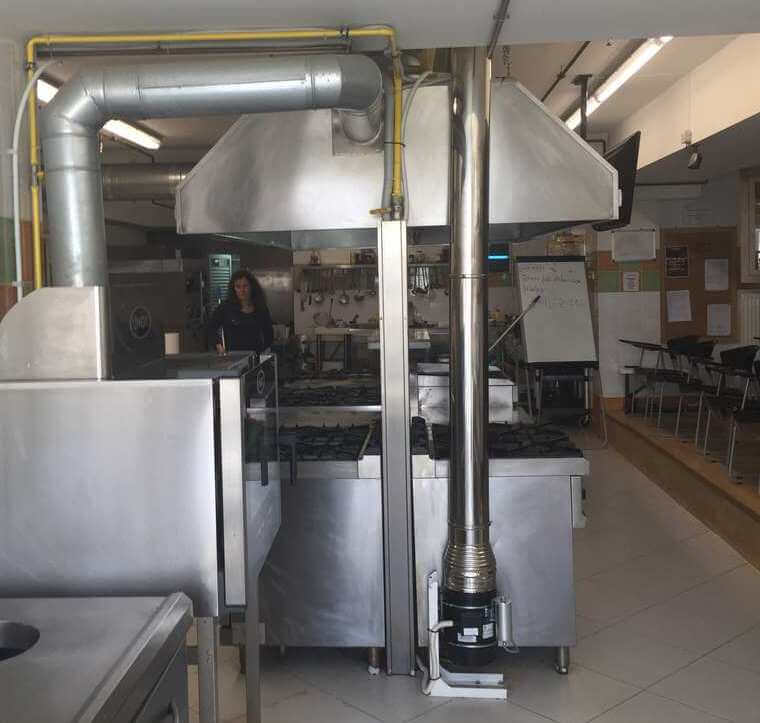

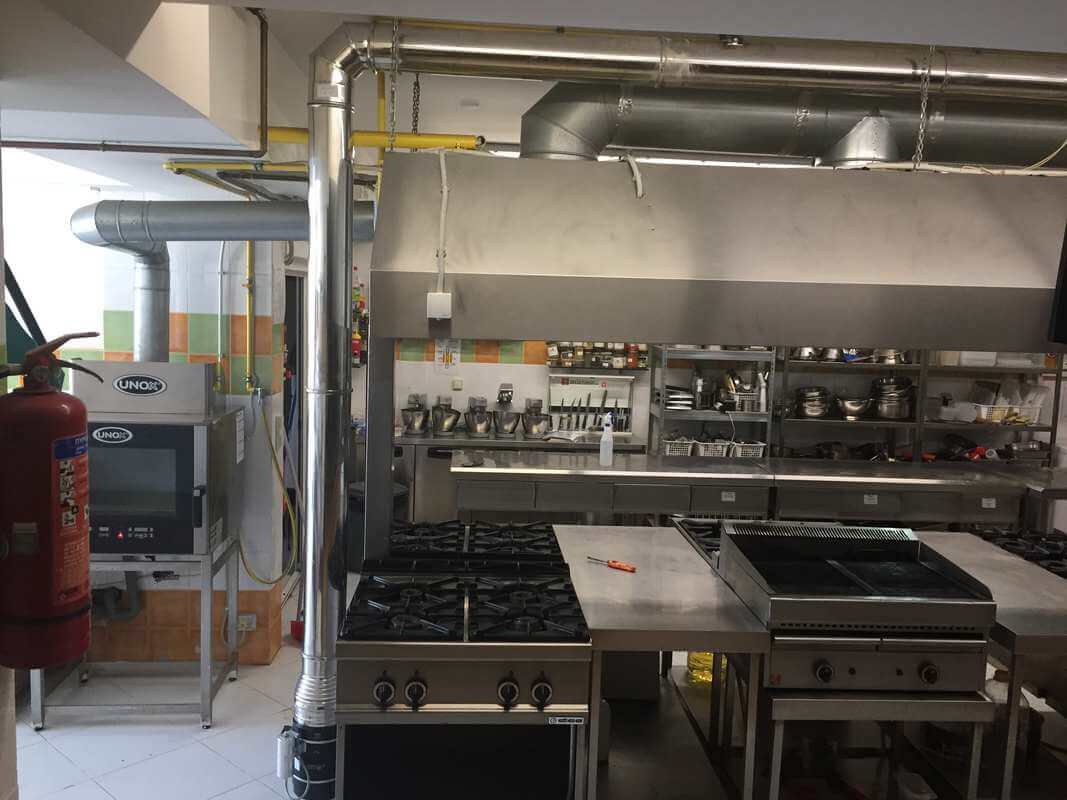

- Explosive-type Circular Section Air Ventilator TD-ATEX.

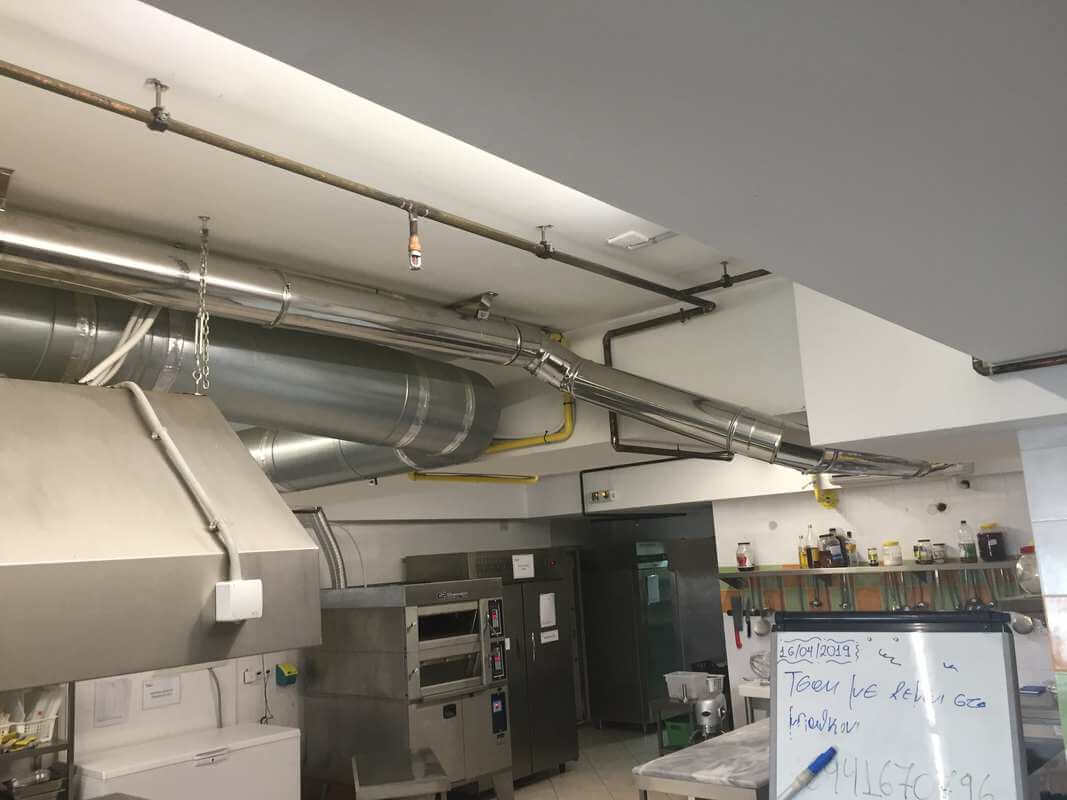

- Duct Insulated Φ125 stainless steel together with angles and support fittings with CE mark Certification for the specific use.
ANDRIANOS has excellent and many years of experience in both the design and implementation of gas fuel management applications, regardless of scale. Study and expand another demanding LPG -Natural Gas System , which provides absolute safety, thanks to the right choices of quality LPG components combined with many years of experience and know-how.
